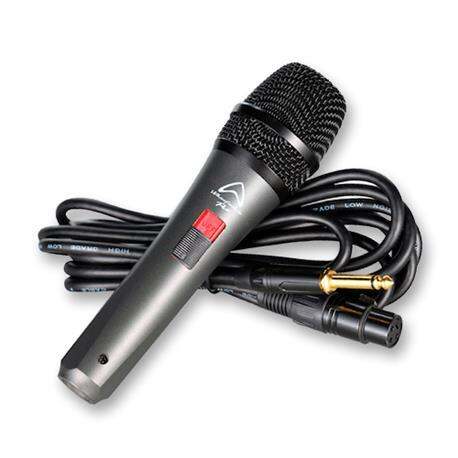

Wharfedale Pro DM5.0SJ Supercardioid Dynamic Microphone

The DM5.0SJ is a versatile, high-performance dynamic moving coil microphone tailored for both live sound and recording applications, including vocals, drums, and guitar cabinets. It is essentially the DM5.0S microphone capsule bundled with a convenience cable for broader use.

Key Specifications:

• Transducer Type: Dynamic
• Polar Pattern: Supercardioid (Unidirectional)
• Frequency Response: $50\text{ Hz}–12\text{ kHz}$
• Output Impedance: $600\Omega$
• Maximum SPL: $>135\text{ dB}$
• Sensitivity: $-52\text{ dB (0 dB}=1\text{ V/Pa)}$
• Off-Axis Rejection: >20 dB at 180∘
• Cable (Supplied): $3.0\text{ meter XLR (F)}\to 6.3\text{ mm (1/4”})\text{ unbalanced jack}$
• Housing: Solid cast metal alloy
• Weight: $300\text{ g}$
• Switch: Long-throw On/Off switch

Key Features:

• Consumer Connectivity: Unique to the ‘SJ’ model, it includes a $3\text{m}$ XLR to 1/4′′ jack cable, allowing simple connection to devices without a balanced XLR input, such as guitar amplifiers or home entertainment systems.
• High Performance: Features a high-performance capsule with a response specifically tailored to provide a warm and natural sound for vocals.
• High SPL Capability: Engineered to handle extremely high Sound Pressure Levels (SPL) of over $135\text{ dB}$ without distortion, making it suitable for loud vocalists, drums, and close-miking guitar cabs.
• Excellent Feedback Rejection: The Supercardioid polar pattern provides superb off-axis rejection, delivering high gain before feedback on stage.
• Silent Switch: Equipped with a low-noise, long-throw On/Off switch for silent operation during live performance or presentations.
• Durable Construction: Built with a rugged, solid cast metal alloy body and a strong steel mesh grille for maximum protection and reliability in demanding environments.
